SMTP Concentrator

The Retarus SMTP Concentrator (hereinafter referred to as the App) is designed to function as a secure and reliable email proxy using TLS-encrypted SMTP sessions between applications within the customer's data center and Retarus Transactional Email Services API. By serving as a bridge, the App enables customer systems to send email messages securely through Retarus’ infrastructure without direct exposure to the public Internet.

The App allows customers to manage client credentials, thus ensuring that their applications can authenticate securely against the App. Once authenticated, the App uses its own set of credentials (as provided by Retarus) to authenticate with Retarus Transactional Email Services API for an encrypted relay of messages.

The App forwards emails within the client session and has no queuing or persistence layer.

Architecture diagram

Authentication: Supports username/password or IP-based authentication, which is configurable by the customer.
Secure Communication with Retarus: Ensures TLS-encrypted SMTP sessions to Retarus Transactional Email Service API over port 25 or 587, using the App's credentials for authentication.

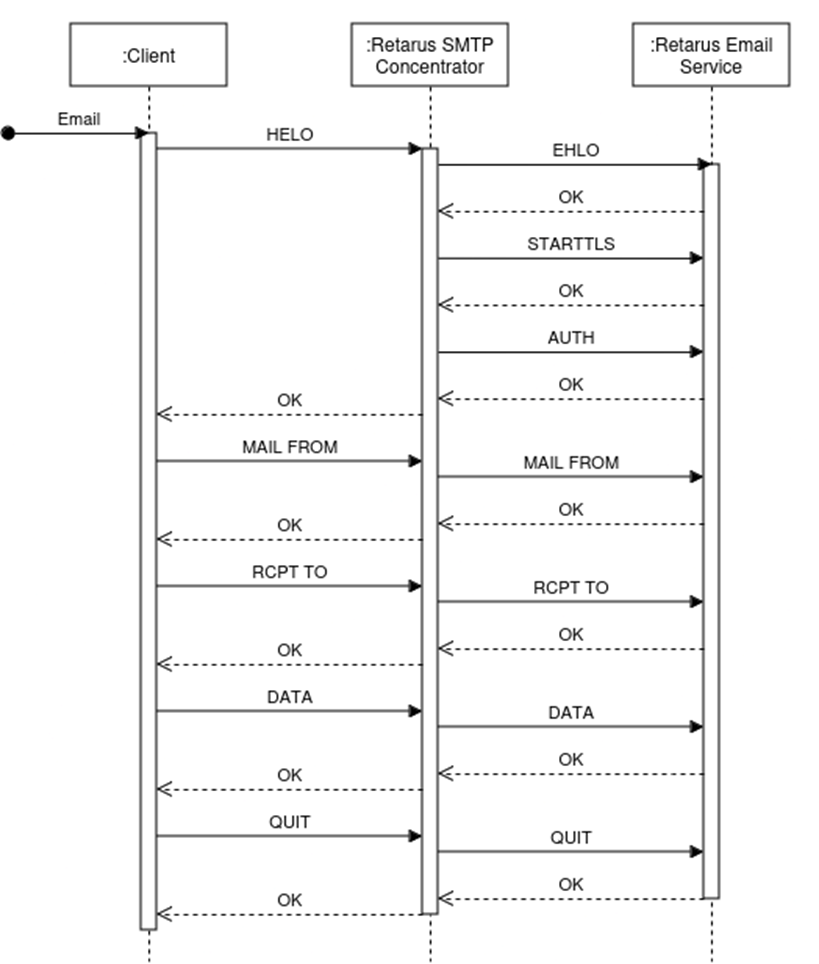

Session sequence diagram

The App then streams the data to the Retarus Transactional Email Services API. No data is written to disk through processing (as outlined below).

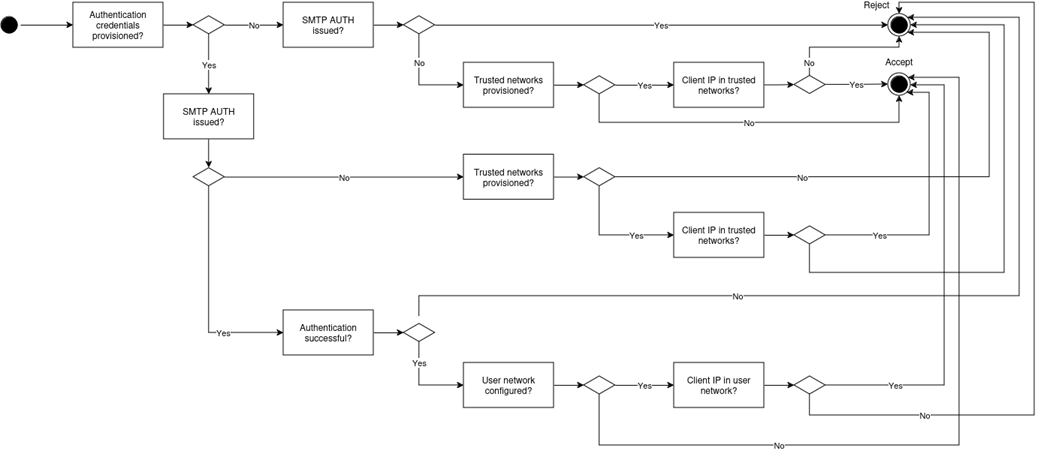

Authentication process within the App

The App is provided via the docker technology. In addition, the customer system is required to host two CSV files.

Supported authentication methods in the App:

Credentials
IP or IP range allowlist
Any combination of the above

Prerequisites / system requirements

To start the container, the system must meet the following requirements:

docker installed in version >= 20.10 (see How to install Docker)
docker-compose installed in version >= 1.27.4 (see How to install Docker Compose)

Hardware requirements

Resource	Minimum	Recommended
Storage	5 Gb	20 Gb
CPU	2	4
RAM	4 Gb	6 Gb

Mail flow throughput
During tests, a throughput of up to 15.000 emails per minute was achieved. However, actual performance may vary depending on system performance, network latency, and rate limits configured on the Retarus API.

Load Balancer
For enhanced resilience, high availability, and even load distribution, it is recommended to deploy a load balancer in front of the Docker containers.

Authentication CSV files
The two required CSV files can be stored by the customer either locally on their server or centrally in an S3 store as long as the App has proper access to these files. Storing the files locally provides proximity to the App, while using an S3 store provides centralized management and accessibility across different environments for the customer. In either case, it is essential to ensure that the App can reliably read and interact with these files to maintain proper authentication and functionality.

Command-line interface

The application provides the start and password subcommands.

Start

Starts the application.

BASH

$ docker run -it smtp-concentrator:1.0.0 start -help
Usage of start:
  -configFile string
        YAML or JSON configuration file (default "./config.yaml")

Password hash generation

Compatible passwords can be directly generated using the Docker container.

BASH

$ docker run -it smtp-concentrator:1.0.0 password -help
Usage of password:
  -hashFunction string
        bcrypt, sha256, sha384 or sha512 (default "bcrypt")

Generating password hash

BASH

$ docker run -it smtp-concentrator:1.0.0 password
Enter your password:
Re-enter password:
This is your password hash:

bcrypt:$2a$10$zMEtiQwuotPCpxVkDPf.Je.2k6xlSHe.bKKH/WHOS8E9YngNbHpcO

Configuration

Format

The configuration can be provided in YAML or JSON format. By default, the App reads the config.yaml file from the working directory.

BASH

$ smtp-concentrator --help
App usage:
  -config string
     YAML or JSON configuration file (default "./config.yaml")

Properties

The configuration comprises three parts for the modules server, client, and logging. Unless otherwise stated, all properties are required.

Server

YAML

server:
  hostname: smtp-concentrator.local
  interface: 0.0.0.0
  port: 2525
  enableProxyProtocol: true
  authenticationCredentials: &authenticationCredentials
  allowInsecureAuthentication: true
  allowInsecurePasswords: false
  trustedNetworks: &trustedNetworks
  tlsCertificate: ./certificate.pem
  tlsKey: ./certificate.key
  requireTls: false

hostname
The name with which the server announces itself via the SMTP protocol. Must be a valid internet hostname (RFC 1123). This property is optional and defaults to localhost.

interface
Network interface of the listener. Must be a valid IPv4 address (RFC 2673).

port
Network port of the listener. Must be a valid TCP port between 1 and 65535.

enableProxyProtocol
Enables the support for the PROXY protocol. This is necessary if the App is running behind a proxy, and the IP addresses of the clients must be preserved for network-based authentication. The IP address of the connection is used if no PROXY header is provided. Therefore, it is safe to enable the PROXY protocol by default. This property is optional and defaults to false.

authenticationCredentials
List of authentication credentials. Requires values for username, password, and optional network. See Provisioning for details. This property is optional, and if it is omitted, SMTP AUTH will be disabled.

Password formats

CODE

[PLAIN_TEXT_PASSWORD]
bcrypt:[BCRYPT_PASSWORD_HASH]
sha256:[SALT]:[SHA256_PASSWORD_HASH]
sha384:[SALT]:[SHA384_PASSWORD_HASH]
sha512:[SALT]:[SHA512_PASSWORD_HASH]

Provisioning file example

CODE

"User A","user1","password1",""
"User B","user2","password2","192.168.0.1"
"User C","user3","password3","10.0.0.0/16"
"User D
(bcrypt)","user4","bcrypt:$2a$10$gon.0wTZMTt9R88kf.N4duEEBPV.EcPAj6x4jL7toU/rS
073CMeQS",""
"User E
(SHA256)","user5","sha256:62e9ce27f1b752b14fd31aef6a810654:2f8377f47d4bfa18632c
89187418e87d1fac662083111c0931a2dd19dcd3c802",""
"User F
(SHA384)","user6","sha384:39e698f2f65833d4a967bf444b8e13bb:5d310a4c9a4911ad001a
c2864ec27cb41f19415a10e3e857365d9c1378b3b88c08db62524253dac9d65e93eff90cc59a",
""
"User G
(SHA512)","user7","sha512:665d90de055076aa2383a79a52aae1e6:d52482f9f92155152e3a
1b97c08631661485a70b385f6bbf9d83a31420e7fe8bffb76c2fce59d51d306bb03f84e1cb7eb79
86ae8ed0b8df97 fa77d91f855530b","192.168.0.0/24"

allowInsecureAuthentication
If enabled, SMTP AUTH is allowed for insecure sessions. Otherwise, the SMTP AUTH command will be rejected if STARTTLS has not been issued. This property is optional, defaults to false, and has no effect if no authentication credentials provisioning is configured.

allowInsecurePasswords
If enabled, plain text passwords are allowed. Otherwise, the SMTP AUTH command will be rejected for this user. This property is optional, defaults to false, and has no effect if no authentication credentials provisioning is configured.

trustedNetworks
List of trusted networks for which no authentication is required. Requires value for network. See Provisioning for details. This property is optional.

Example provisioning file

CODE

"Network 1","127.0.1.1"
"Network 2","127.0.0.0/24"
"Network 3","192.168.0.1"

tlsCertificate
File system path of the TLS certificate for the server.

tlsKey
File system path of the TLS certificate key for the server.

requireTls
If enabled, STARTTLS is always required for SMTP sessions. Otherwise, SMTP commands after HELO will be rejected. This property is optional and defaults to false.

Provisioning

YAML

provisioning:
  name: name
  resource: &resource
  authentication: &authentication
  format: &format
  interval: 10m

name
Name of the provisioning. Will be used for logging.

resource

CODE

type: HTTP
location: https://example.com/config/provisioning.csv
timeout: 60s
skipCertificateVerification: false

Supported types are FILE and HTTP. The location must be a file system path for the FILE type or a URL for the HTTP type. The timeout property defaults to 60s, and the skipCertificateVerification property defaults to false. Both properties are optional and are only supported for HTTP resources.

authentication

CODE

type: BASIC
credentials:
  username: username
  password: password

Supported types are BASIC and AWS for S3. The credentials must be username and password for type BASIC and key and secret for type AWS. The authentication is ignored for FILE resources.

format

CODE

type: CSV
noHeader: false
columns:
  username: 0
  password: 1
  network: 2

The supported type is CSV. The noHeader property is optional and defaults to false. If set, the first line of the file will be skipped. The required columns depend on the use case. The index of the columns must be between 0 and 32, with index 0 being the first column. All other columns will be ignored.

interval
The interval at which the App checks for a new configuration. This property is optional, and if omitted, the configuration will be provisioned once at the start.

Client

YAML

client:
  server: mail.example.com
  port: 25
  skipCertificateVerification: false
  username: username
  password: password
  commandTimeout: 10s
  submissionTimeout: 60s
  noReferenceHeader: false

server
Domain name of the Retarus Transactional Email Services API. Must be a valid internet hostname (RFC 1123).

port
Network port of the Retarus Transactional Email Services API. Must be either 25 or 587.

skipCertificateVerification
Disables the server certificate verification.

username
Username for the authentication of the Retarus Transactional Email Services API.

password
Password for the authentication of the Retarus Transactional Email Services API.

commandTimeout
Timeout for SMTP commands sent to the Retarus Transactional Email Services API.

submissionTimeout
Timeout for the email sent to the Retarus Transactional Email Services API.

noReferenceHeader
The property is optional and defaults to false. If set to true, no header will be added with the reference. Emails are not traceable if the reference header is omitted.

Logging

CODE

logging:
  level: DEBUG

level
Minimum log level for printed log messages. The following values can be configured:

TRACE
DEBUG
INFO
WARN
ERROR
FATAL
PANIC

Examples

Open relay configuration

YAML

server:
  interface: 0.0.0.0
  port: 25
  tlsCertificate: ./certificate.pem
  tlsKey: ./certificate.key

client:
  server: mail.example.com
  port: 587
  username: username
  password: password
  commandTimeout: 10s
  submissionTimeout: 60s

logging:
  level: INFO

Configuration with file and S3 provisioning

YAML

server:
  hostname: smtp-concentrator.local
  interface: 0.0.0.0
  port: 2525
  enableProxyProtocol: true
  authenticationCredentials:
    name: authentication-credentials-provisioning
    resource:
      type: FILE
      location: ./config/auth.csv
    format:
      type: CSV
      columns:
        username: 1
        password: 2
        network: 3
    interval: 5m
  allowInsecureAuthentication: true
  trustedNetworks:
    name: trusted-networks-provisioning
    resource:
      type: HTTP
      location: https://example.com/config/network.csv
      timeout: 60s
      skipCertificateVerification: true
    authentication:
      type: AWS
      credentials:
        key: key
        secret: secret
    format:
      type: CSV
      columns:
        network: 1
    interval: 10m
  tlsCertificate: ./certificate.pem
  tlsKey: ./certificate.key
  requireTls: false

client:
  server: mail.example.com
  port: 587
  skipCertificateVerification: false
  username: username
  password: password
  commandTimeout: 10s
  submissionTimeout: 60s

logging:
  level: DEBUG

Application setup

Docker image import

The Docker image can be imported from the TAR archive provided by Retarus (see Docker CLI reference):

CODE

docker load < ./smtp-concentrator_1.0.0.tar

The Docker image import can be verified by listing local images with the smtp-concentrator tag:

BASH

$ docker image ls smtp-concentrator
REPOSITORY          TAG     IMAGE ID      CREATED             SIZE
smtp-concentrator   1.0.0   c3112ee34de7  About a minute ago  11.8MB

Docker Compose setup

Docker Compose file

Example of docker-compose.yml (see Docker Compose quickstart)

The working directory is /app/ and referenced files must have an absolute path or a relative path to the working directory.

YAML

services:
  smtp-concentrator:
    # Docker image name and version
    image: smtp-concentrator:1.0.0
    volumes:
      # Mount of the local configuration into the container
      - ./config.yaml:/app/config.yaml
      # Mount of the local server certificate into the container (must be referenced in the configuration)
      - ./certificate.pem:/app/certificate.pem
      # Mount of the local server certificate key into the container (must be referenced in the configuration)
      - ./certificate.key:/app/certificate.key
      # Mount of a provisioning configuration (must be referenced in the configuration)
      - ./auth.csv:/app/auth.csv
      # Mount of a provisioning configuration (must be referenced in the configuration)
      - ./network.csv:/app/network.csv
      # Optional mounting of local certificate authorities
      - /etc/ssl/certs/:/etc/ssl/certs/
    ports:
      # Port mapping from local listener port to server port (defined in configuration)
      - 2525:2525
    # Automatically restart Docker container
    restart: always

Application start

The Docker Compose setup can be run from the same directory as the docker-compose.yml file.

CODE

docker-compose up -d

Application logs

Logs of the running service can be viewed with the following command.

CODE

docker-compose logs -f

Debugging

Common log messages

This section describes common log messages that customers might see and explains their meaning.

Message has been successfully forwarded to Retarus

JSON

{"level":"INFO","name":"smtp-concentrator",
"sessionId":"cefc7eb7-b5e0-447c-9030-71f17e34ba7f",
"messageId":"2169f076-9f2f-43cd-ba77-34aadd99e991",
"time":"1979-01-01T00:00:00Z",
"method":"session.go:180",
"message":"Successfully forwarded message to mail.example.com:587
(Ok: processed as 4WtxwV5y2Nz1wFX)"}

Network not trusted and authentication not successful

JSON

{"level":"INFO",
"name":"smtp-concentrator",
"sessionId":"f1612cdf-76db-4964-baada44772ad6bf7",
"messageId":"17127bbf-429c-4607-ab46-b102984effc6",
"time":"1979-01-01T00:00:00Z",
"method":"session.go:116",
"message":"Rejected unauthenticated connection from 127.0.0.1"}

Invalid client credentials

JSON

{"level":"ERROR",
"name":"smtp-concentrator",
"sessionId":"82c99347-a5c3-46b0-8881-7a671cb0debc",
"error":"SMTP error 535: Error: authentication failed: ",
"time":"1979-01-01T00:00:00Z",
"method":"session.go:38","message":"Client authentication failed"}

Invalid configuration

JSON

{"level":"FATAL",
"name":"smtp-concentrator",
"error":"jsonschema: '/server' does not validate with file:///schema.json#
/properties/server/required: missing properties: 'interface'",
"time":"1979-01-01T00:00:00Z",
"method":"smtpconcentrator. go:85",
"message":"Failed to parse configuration"}

Performance tests

Results

The table below shows the application's performance. For the load tests we used smtp-source with 1000 byte mails.

Clients	Requests/s	Cores	Instances
150	263	2	1
100	271	2	1
10	84	2	1

Terms of use

Please refer to Terms of Use.

If you do not fully agree to the Terms of Use, do not install, access, or use the App.
