SYNC_MODE = 2

SYNC_MODE = 2: Build Azure AD Groups

One or more groups with different settings can be created as Azure AD groups. To achieve this, a group object must be added with the appropriate parameters.

Group initialization is done by adding a dictionary entry in the following format:

GroupsDict.Add("M365Group_FaxUsers", new Group
(syncGroupOwners:true,syncM2F:true,syncM2F_wFN:true,syncF2M:true,syncF2M_fwd:
true,params_Header:new string[]{“givenName”,”department”},header:"AnyHeaderYouWant",
params_Coversheet:new string[]{"givenName","surname","department","postalCode"},
faxNumberField:"faxNumber",add_countrycode:false, countrycode:"55",
extension_length:0,extension_prefix:"",id_Azure:""));

• Key (datatype: string): Entra Admin Center Group Name

• Value (datatype: Class Group): Parameterized representation of the group

• Definition of Class: Group

No. 1: SyncGroupOwners

Value	Description
true	Syncs the owner(s) of the group. Which services are synced and how they are synced depends on the settings for SyncM2F, SyncM2F_wFN, SyncF2M, and SyncF2M_fwd, which apply to both owners and members of a group. Depending on the permissions granted to the Microsoft Graph API function (defined in Azure Portal → Enterprise Applications → Enterprise Application → Application ID), either only M365 group owners or also owners of distribution lists and security groups can be synced. The provided sample code retrieves all group owners it is configured to fetch via the Microsoft Graph API. However, which owners can be read depends on the Microsoft Graph API capabilities and the enterprise application settings.
false	Does not sync the owner(s) of the group. No services are synced.

No. 2: SyncM2F

No. 3: SyncM2F_wFN

This parameter is only relevant for Email-to-Fax configuration.
Do not delete this parameter, even if Email-to-Fax is not used for this group.

No. 4: SyncF2M

This parameter defines whether Fax-to-Email synchronization should be enabled.

Value	Description
true	Synchronizes mailboxes of this group for Fax-to-Email using the fax number fields specified in FaxNumberField. If SyncF2M = true for a group, but: One or more mailboxes do not have a fax number entry, or The mailbox has only an alphanumeric CSID that cannot receive faxes, → these mailboxes will not be synchronized for Fax-to-Email. For more details, see Fax Entry in Graph API dictionary table and definitions.
false	Don’t sync this group's users for Fax-to-Email.

No.5: SyncF2M_fwd

No. 6: Params_Header

Params_Header lists all parameters required for a user-specific fax header. It does not matter whether a parameter is also listed in Params_Coversheet.

• Use Graph API notation for parameter names, not Entra Admin Center notation.

• The association table is available in Graph API dictionary table and definitions.

• Do not delete this entry, even if a personalized header is not required.

Examples

• To include the department in the individual header:
  params_Header:new string[]{"department"}

• To include both the department and the given name:
  params_Header:new string[]{"department", "givenName"}

• If the header is static for this group, no parameter needs to be queried:
  params_Header:new string[]{}

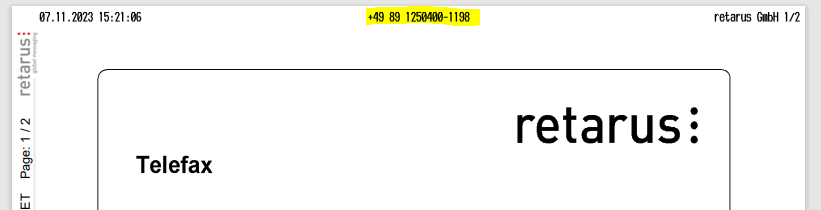

A personalized fax header can include user-specific details, such as the fax number (highlighted in yellow in the example fax). Additionally, document-dependent information like timestamps, dates, and fax page numbers can be displayed in the header.

The header can be different for group owners and members.

No. 7: Header

Header defines a static header for all members and owners of a group.

Examples

• To set a static header for all group owners and members:
  header:"AnyHeaderYouWant"

• If a static header is not required, set an empty string:
  header:""

If a personalized header is required, it must be set directly in the code, since personalization parameters (e.g., user.surname) are only available at runtime when generating user lists (m2f.csv).

For group synchronization (MODE=2), search for the following parameters in the code and modify/uncomment the relevant lines:

• PERS_HEADER_MODE2_USERS

• PERS_HEADER_MODE2_OWNERS

For further details on Retarus Email-to-Fax headers, refer to the Email-to-Fax documentation or contact your Technical Consultant or Implementation Engineer

Examples

To enable a user-specific header, modify/uncomment the following lines in the code:

For group members (PERS_HEADER_MODE2_USERS):

// WRITE/UNCOMMENT CODE BELOW IF USER-SPECIFIC HEADER SHALL BE USED
// header = "{DateTime.Now:0f dd.MM.yyyy HH:mm %C} " + user.surname + " %r%P/%T";

For group owners (PERS_HEADER_MODE2_OWNERS):

// WRITE/UNCOMMENT CODE BELOW IF USER-SPECIFIC HEADER SHALL BE USED
// header = "{DateTime.Now:0f dd.MM.yyyy HH:mm %C}" + " " + group_owner.surname + "%r%P/%T";

No. 8: Params_Coversheet

Defines Microsoft Graph API parameters used for the Email-to-Fax cover sheet.

Examples

• If no cover sheet parameters are required for a group:
  params_Coversheet:new string[]{}

• If a group requires given name, surname, and department:
  params_Coversheet:new string[]{"givenName", "surname", "department"}

Important Notes

• Use Graph API parameter names, not Exchange Admin Center names. See Graph API dictionary table and definitions for reference.

• Graph API parameters are always in lower case.

• In the m2f.csv file, the sample code prefixes each Microsoft Graph API parameter with “s_” to distinguish between standard m2f.csv parameters and custom parameters:

  • Graph API Parameter: "givenName"

  • Corresponding m2f.csv field: "s_givenName"

Cover sheet parameter handling

The sample code automatically creates a unique list of coversheet parameters across all synchronized groups. Different groups can have:

• The same coversheet parameters

• Different coversheet parameters

• A subset of other groups’ coversheet parameters

Coversheet parameters that are not relevant for a specific group appear as empty fields in the final m2f.csv for mailboxes in that group.

No. 9: FaxNumberField

Defines the source for the alphanumeric CSID or one or more numeric fax numbers/CSIDs.

This parameter specifies the Microsoft Graph API name of the Entra Admin Center field that contains fax number/CSID information for the group. The sample code supports fax number data from either businessPhones or faxNumber (see also Graph API dictionary table and definitions).

Examples

• If fax number or CSID information is stored in the businessPhones field:
  faxNumberField:"businessPhones"

• If fax number or CSID information is stored in the faxNumber field:
  faxNumberField:"faxNumber"

Use case: business phone as fax number source

Some setups associate a fax number with a phone number extension rather than storing it separately, for example:

• Business phone: +49 12345678 – 1234

• Fax number: +49 12345678 – 5 – 1234

In such cases, some customers may prefer to use the business phone field directly and apply the Extension_length and Extension_prefix functionalities to extract fax number information.

No. 10: Add_countrycode

Defines whether a country code is added to detected fax numbers in this group.

Value	Description
true	Adds the country code to all detected numeric fax numbers in this group. The system detects whether an entry is an alphanumeric CSID or a numeric CSID/fax number. A country code is not added to alphanumeric CSIDs. If a user has multiple fax numbers, each number receives the country code. In forwarding scenarios, the country code is only added to the customer’s number (B-number). The Retarus number (C-number) is predefined and already includes the country code in Azure. Fax numbers that do not already contain a country code can be written with or without a leading zero. If a leading zero is used, it will be removed, and the country code specified in Countrycode will be added. The only hardcoded exception where the leading zero is retained is when the country code is Italy (39). In Italy, leading zeros are local prefixes that must not be removed, and the country code serves as a prefix for the entire stored number.
false	No country code is added to fax numbers of this group's mailboxes.

No. 11: Countrycode

Defines the country code to be added to fax numbers if this feature is required. Enter the country code without “+” or “00”, e.g., "1" for the US or "49" for Germany.

Examples

• To add the country code 55:
  countrycode:"55"

• To not add a country code:
  countrycode:"" (not required if add_countrycode: false)

Fax numbers that do not already contain a country code can be written with or without a leading zero. If a leading zero is used, it will be removed, and the country code specified in Countrycode will be added.

The only hardcoded exception where the leading zero is retained is when the country code is Italy (39). In Italy, leading zeros are local prefixes that must not be removed, and the country code serves as a prefix for the entire stored number.

No. 12: Extension_length

Defines the fax number block length for this group's number block (e.g., 4 for a block of 10,000 numbers). The sample code synchronizes:

• The number block as block-name in f2m.csv

• The extension as extension in f2m.csv

In forwarding scenarios, this separation applies to the C-number (Retarus forwarding number).

No. 13: Extension_prefix

Defines the prefix for fax number extensions, typically used when the fax number is derived from the business phone number for this group.

Example

• If the business phone is:
  +49 12345678 – 1234

• And the corresponding fax number is:
  +49 12345678 – 5 – 1234

Then the extension prefix is extension_prefix: "5".

If this functionality is not used, set extension_prefix: "".

No. 14: Id_Azure

Represents the Group ID in Microsoft Azure. During initialization, this value is empty and must be set as
id_Azure: "".

The variable is populated when the Group name is listed as a GroupsDict.Key in:

Dictionary<string,Group> GroupsDict = new Dictionary<string,Group>();

It can be found in the customer's Azure Active Directory. Every Azure Group has such an ID.

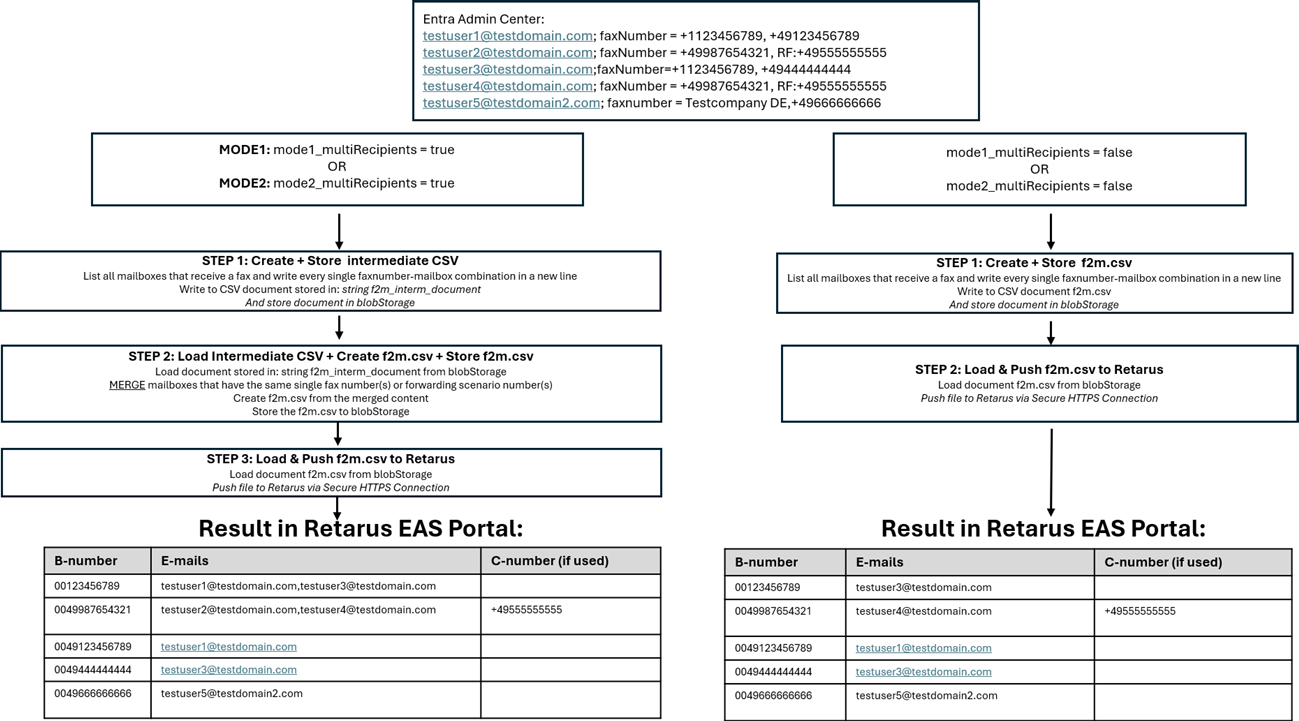

mode2_multiRecipients

Defines how fax recipients are handled in Mode 2.

Scenarios

1. mode2_multiRecipients = true
   → An intermediate CSV is created, and fax recipients are merged.

2. mode2_multiRecipients = false
   → No intermediate CSV is created, and fax recipients are overwritten.

Consequence

If multiple recipients are expected for one or more fax numbers now or in the future in your Fax-to-Email implementation, set:
mode2_multiRecipients: true
